Sold per meter, reel of 100 meters.

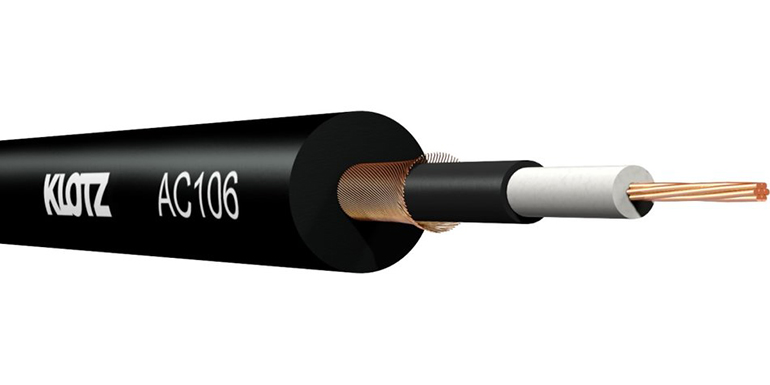

This robust, well shielded audio cable offers especially good handling due to its low external diameter. It is suited for high-impedance instruments as well as for wiring of Pedal boards and Line level devices.
cond. construction stranded bare copper, 7 x 0.20 mm
cond. cross section 0.22 mm2
insulation polypropylene (PP) foam
1. shield conductive plastic layer
2. shield bare copper spiral shield
outer jacket PVC, matt
overall diameter 6.5 mm
min. bending radius 30 mm
working temperature -20°C / +70°C
conductor resistance < 85 Ω/km
cond. / shield 95 pF/m
insulation resistance > 1 GΩ x km
