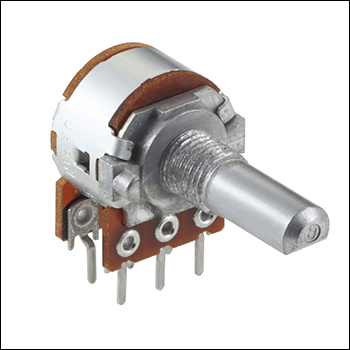

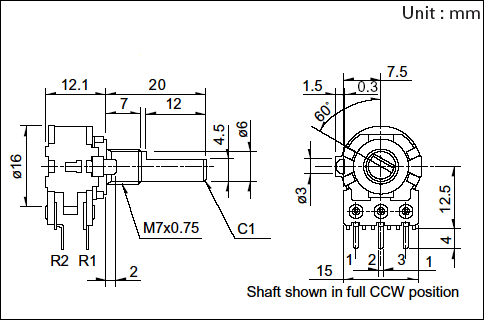

Part number RK16312A0B85Number of resistor elements Dual-unitMounting direction Horizontal typeFixing method of bushing ScrewShaft types FlatTerminal style For PC boardLength of the shaft 20mmCenter detent WithoutTotal resistance 10kΩResistance taper 15A
